Datasheet 　　User Manual



geni box

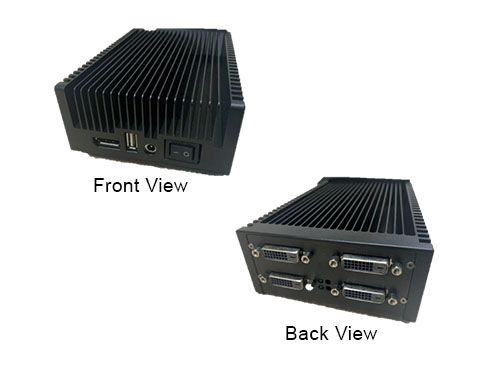

Horizontal Video Splitter-2K(2x2)



   Datasheet

   Large Image





















 Application:









Feature :
  • Single DP Input for 2Kx4 2x2 Video Wall Application
  • Easy & Quick install P&P without driver
  • Support DP1.2 input with DVI 1.0 output
  • Support Landscape & Portrait Mode by GPU Driver
  • Low Power & High Performance
  • Dimension WxHxD 112x58x175mm
  • Power Supply:  DC Jack +12V 25W
  • Model:PCV-DPHMH14-220




System
 • Input DP1.2 3840x2160@60HZ
 • HDMI SPEC DVI 1.0 1920x1080@60Hz
 • Outpout 1920x1080@60Hz x4
 • Power Supply DC Jack +12V 2A
 • Model  PCV-DPHMH14-220








 Structure and Operating Environment
 • Deminsion( H x W x D ) 112x58x175mm
 • Warranty 1 year
