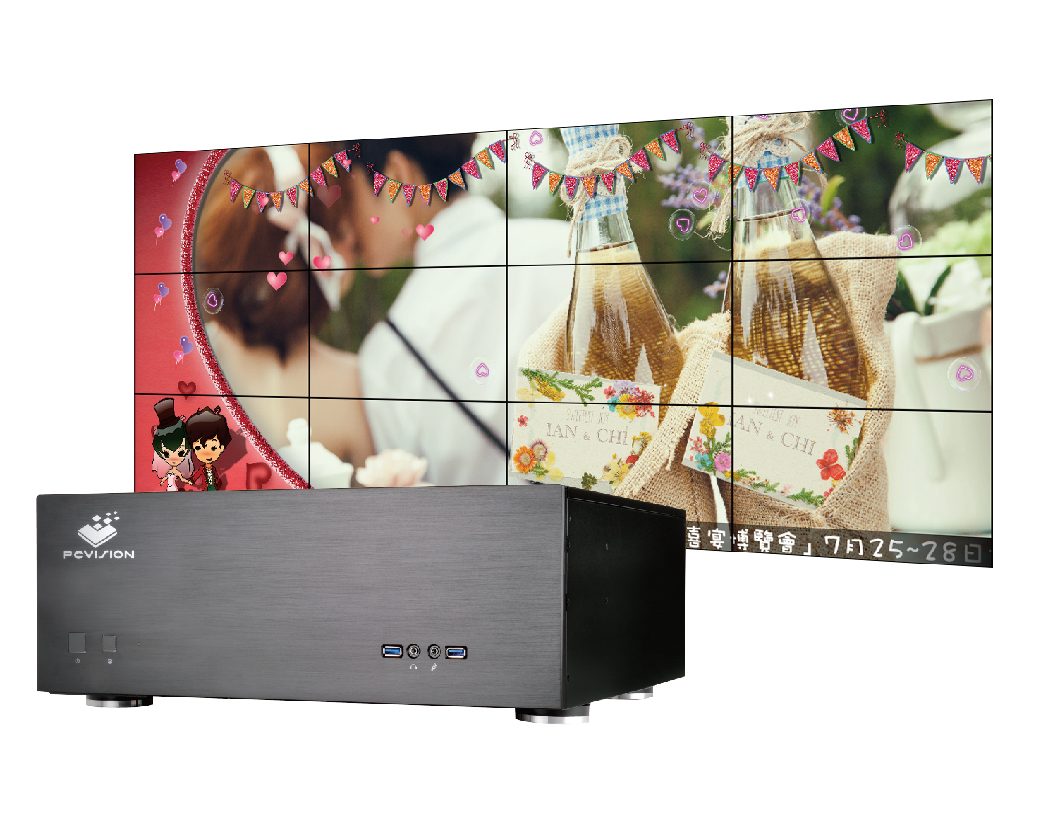

| Ultra Matrix Pro V system |
|
| Ultra Matrix Pro H system |
|
Display Solution:
| The High Performance Video Wall Platform, Ultra Matrix, take lead of Video Wall Industry, presenting Multi-Display as Maximum resolution 16K. With All-in-one performance hardware platform, Ultra Matrix provide physical pixel in each video wall LCD to reach gorgeous display quality, co-work with editable 16K UHD software Visuade, Ultra Matrix makes your Video Wall extremely attractive. |
Feature
-
16K UHD Powered by Ultra Matrix Hardware & Software Visuade
-
Meticulous & Sharp image even 8K or 16K Video Wall
-
Support Hard code EDID Easy Maintenance
-
Self-Position & Color Test Patterns
-
Support system automatic ON/OFF by RTC
System
| • Processor |
Intel® Core™ i7 |
| • Memory |
16GB DDR3 |
| • Storage |
1 x 3.5"1TB HDD
1 x 2.5” 256G SSD |
| • Operating System |
Win 8.1/10 64Bit |

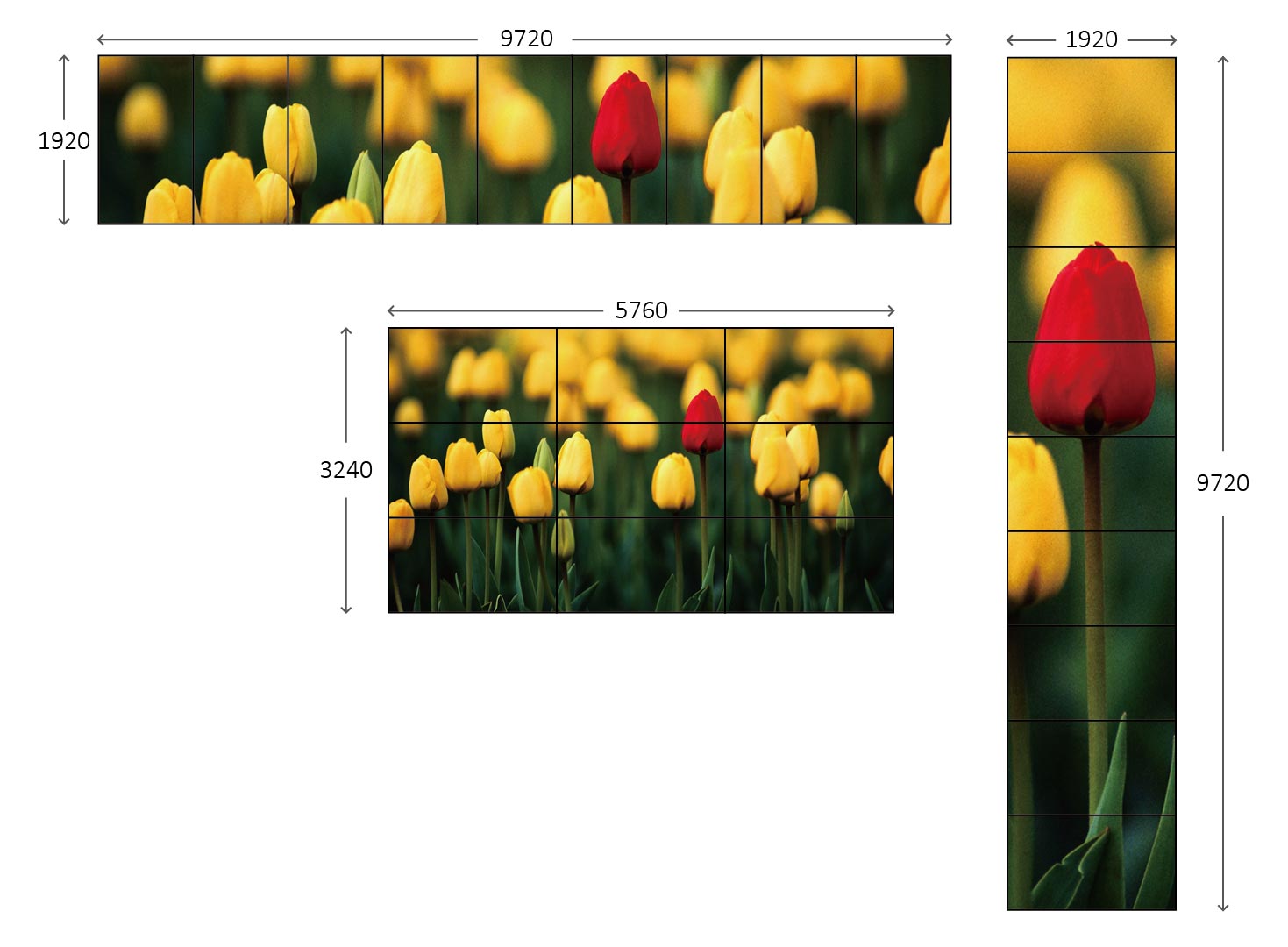

| • Video Wall Resolution |
1920x1080@60Hz (Vertical)
1920x1200@60Hz (Horizontal) |
| • PC Vision Software |
Visuade™ Pro |
|
Structure and Operating Environment
| • Power Supply |
850 WATT |
| • Fans |
4 x PWM |
| • Housing |
Aluminium / Metal |
| • Dimensions (H x W x D) |
177 x 440 x 428mm |
| • Weight |
12KG |
| • Certification |
CE, FCC |
|

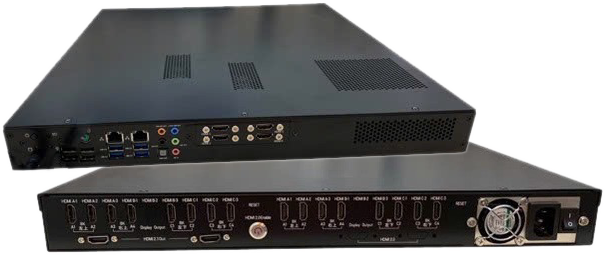

Output Ports
| • Audio Output |
5 x 3.5mm ; 1 x S/PDIF |
| • USB Ports |
2 x USB 2.0, 6 x USB 3.0 |
| • PS/2 Ports |
1 |
| • Connectivity Ports |
2 x RJ45 Ethernet / 2 x WiFi Antenna |
|
Accessory Option
| • PCVision External USB Capture |
HDMI x1(1080p x1) |
| • PCVision N2 4K PCIe Capture |
HDMI x2
(1080P x2, 4K@30Hz x1) |
| • PCVision N4 FHD PCIe Capture |
HDMI x4
(1080i x4, 1080p x2) |
| • PCVision N4 FHD PCIe Capture |
SDI x4
(1080i x4, 1080P x2) |
|
Packing Contents
• 1 x Ultra Matrix Pro System
• 2 x Wi-Fi Antennas
• 1 x Power Cord Cable |
Ordering Infomation
| UMP8AE-H |
AMD E series |
UMP15AE-V |
AMD W series |
| UMP8N-H |
NVIDIA |
UMP15AW-V |
AMD FirePro™ Series |
| UMP9AE-V |
AMD W series |
UMP16M-H |
Matrox Solution |
| UMP9N-V |
NVIDIA GTX Series |
UMP18AE-V |
AMD W series |
| UMP12AE-H/V |
AMD W series |
UMP18AW-V |
AMD FirePro™ Series |
| UMP12AW-H/V |
AMD FirePro™ Series |
UMP21M-V |
Matrox M Series |
| UMP12N-V |
NVIDIA GTX Series |
UMP24M-V |
Matrox M Series |
|
|
| |
|
|
|
