Datasheet 　　User Manual



Single Box Single DP Cable for 3x3

Best Solution for Video Wall

   Datasheet

   Large Image





















 Application:







 UMCC Utility for Display Resolution Setting





Feature :
  • Single Box for FHDx9 Video Wall Application
  • Use 1 DP  Cable for 3x3 (5760x3240@60Hz) Easy for Maintain
  • Easy & Quick install P&P without Any Driver
  • Support DP1.4 Input with HDMI 1.4 Output

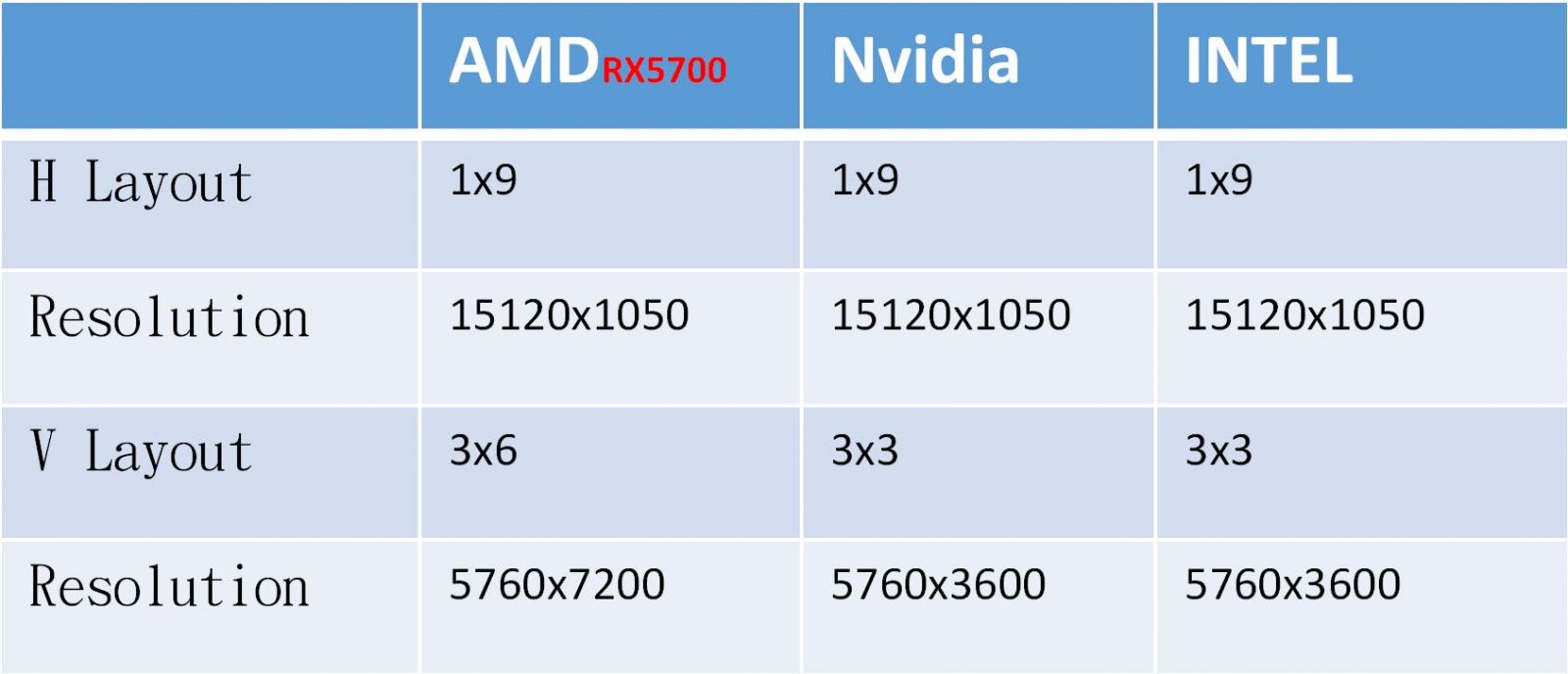

  • Support Landscape & Portrait Mode by GPU Driver
  • Low Power & High Performance
  • Customize Display Resolution (Control By UMCC Utility )

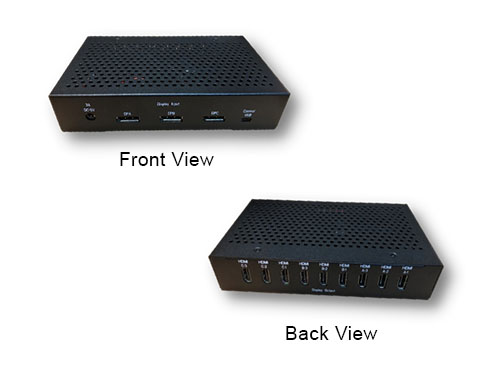

  • Dimension WxHxD 175x38x105mm
  • Power Supply:  DC Jack +5V 20W
  • Support Vertical Rate: 20Hz~120Hz
  • Model:PCV-DPHMH19-115A




System
 • Input DP1.4 5760x1080@60Hz x3
 • HDMI Output SPEC HDMI 2.0 up to 3840x2160@60Hz
 • Output 1920x1080@60Hz x9 (5760x3240@60Hz)
 • Power Supply DC Jack +5V 6W
 • Model PCV-DPHMH39-115A








 Structure and Operating Environment
 • Deminsion( H x W x D ) 175x38x105mm
 • Enclosure Metal With Fixing kits
 • Weight
 • Warranty 1 year
