PC Vision provide high quality UHD video wall solution. By using a proprietary developed Ultra Matrix system supporting resolutions up to 8K, the visual experience truly comes to life. This multi-display platform features superior hardware combined with an in-house designed editing and playback software - Visuade™. The Ultra Matrix Lite enables an high level of integration, multiple scopes of application and stunning visuals for your video wall.

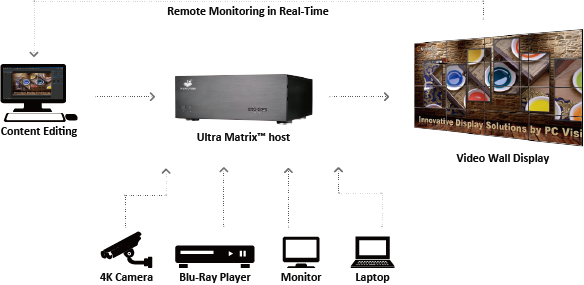

System Architecture
Support local control mode, easy to edit, review and remote monitoring.
The optimum editing player, Visuade™
Visuade is editable player which is built in Ultra Matrix system. With Visuade of Ultra Matrix, user can define display format, as well as execute advanced picture and video. Ultra Matrix high performance hardware acceleration support Visuade process multi layers dynamic object mixing. Visuade’s humanized intuition operation provide user to define schedule easily, as well as to scheme the content on areas of screen. By implement of virtual irregular splicing, thematic scene…etc, user efficiently build the professional, vivid, and attractive video wall content.

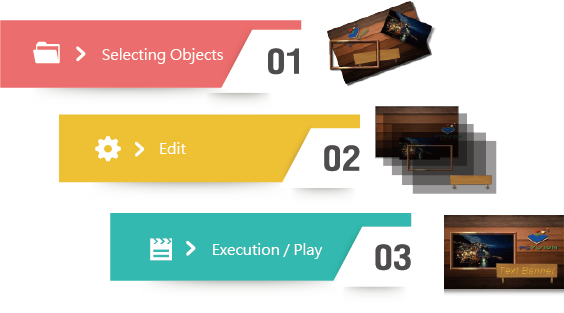

Edit to Go
The editing work can be done soon, then carry on preview and play.
Below is the main steps :

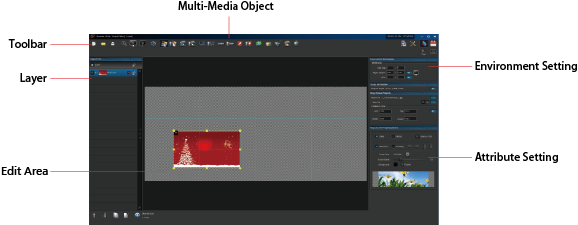

User Friendly
Visuade player quickly define the format content, advanced pictures, and videos, under the high performance hardware acceleration, Visuade edit-to-go produce professional, high definition, and high efficiency scenes, and then bring high benefit advertisement.

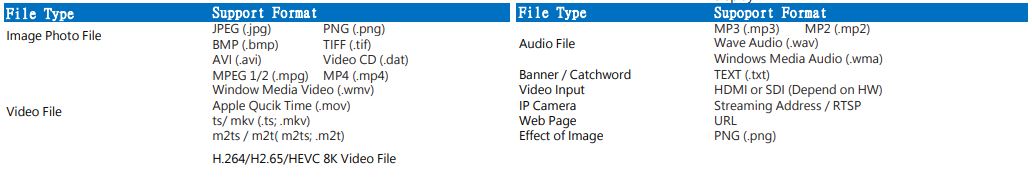

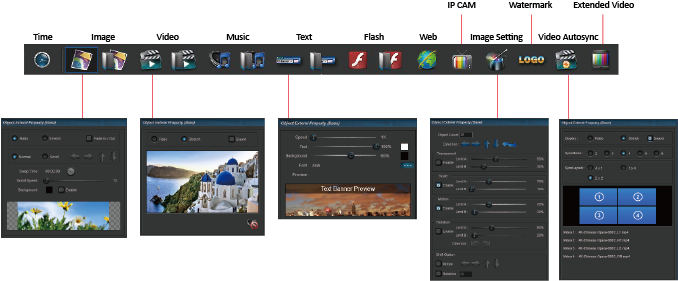

Multimedia File Format
Visuade support standard picture, music, video, flash, and scrolling text playing, as well as the built-in dynamic coloring to enhance the visual effect. Moreover, Visuade support IP Cam and external video input.

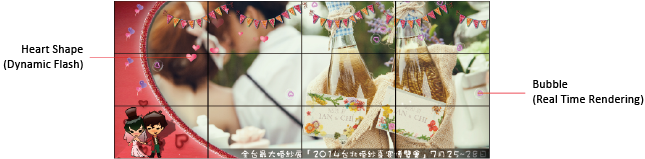

Painting
One outstanding feature of Visuade is multi layers dynamic object mixing under high performance hardware acceleration. User can also import flash animation to enhance overall visual effect.

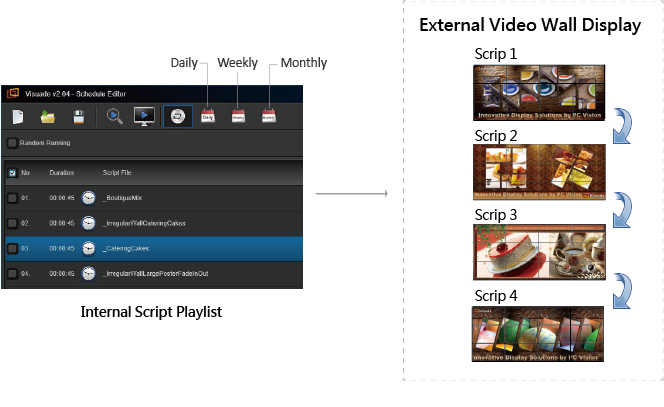

Scheduling
After build up all scenes, user can schedule the playlist to play the media content, to finish various scenes be played in turn within schedule.
