Datasheet 　　User Manual

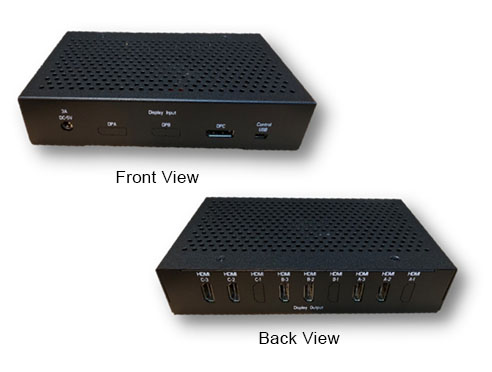

12K Horizontal Video Splitter-2K 6Port



   Datasheet

   Large Image





















Application:





 UMCC Utility for Display Resolution Setting





Feature :
  • Single Box for FXDx6 Video Wall Application
  • Easy & Quick install P&P without driver
  • Support DP1.4 Input with HDMI 1.4 Output

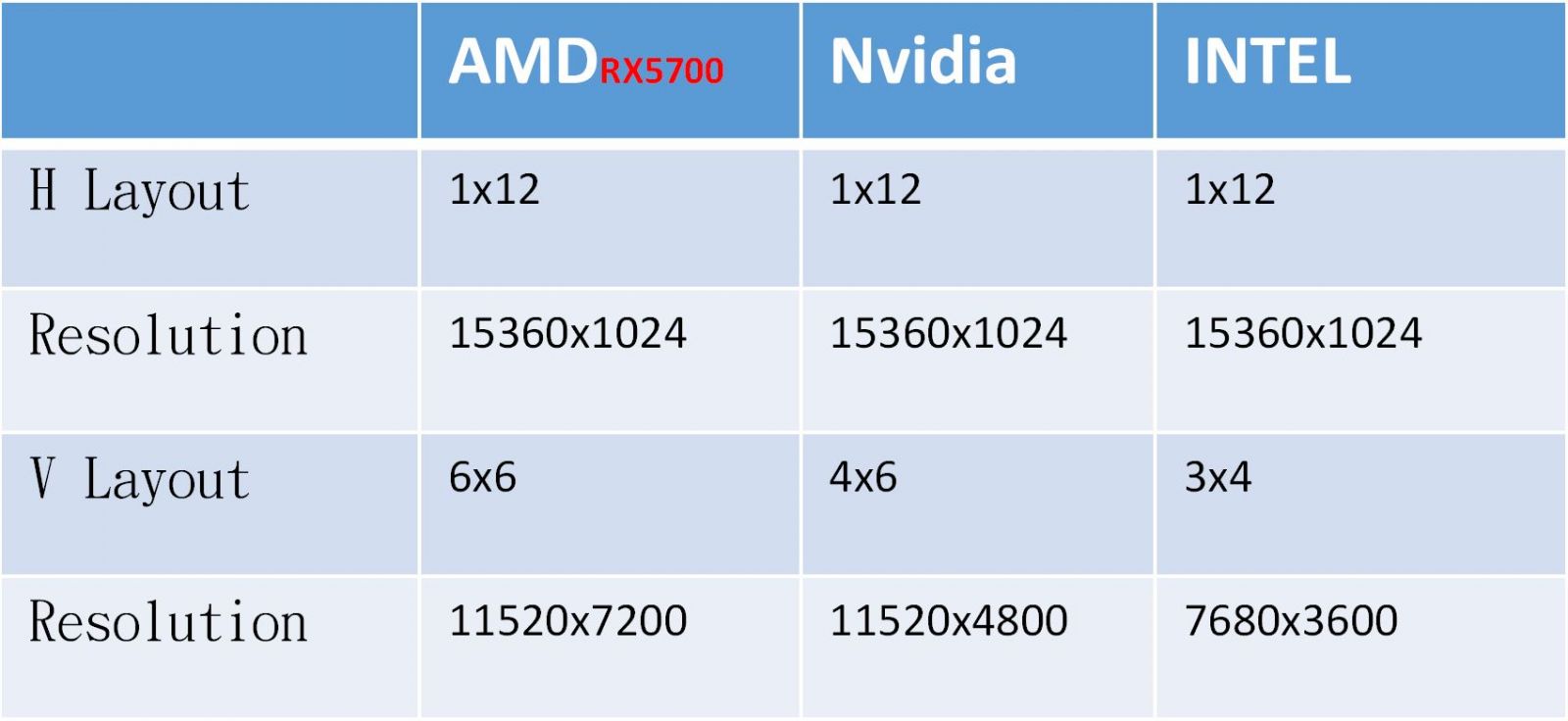

  • Support Landscape & Portrait Mode by GPU Driver
  • Low Power & High Performance
  • Customize Display Resolution (Control By UMCC Utility)
  • Dimension WxHxD 175x38x105mm
  • Power Supply:  DC Jack +5V 10W
  • Model:PCV-DPHMH16-115C




System
 • Input DP 1.4 11520x1080@60Hz
 • HDMI Output SPEC HDMI 2.0 Up to 3840x2160@60hz

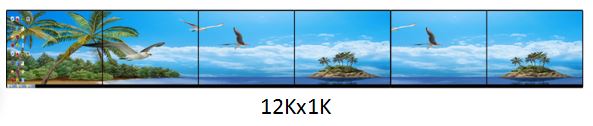

 • Output 1920x1080@60Hz x6 (11520x1080@60Hz)
 • Power Supply DC Jack +5V
 • Model PCV-DPHMH16-115C








 Structure and Operating Environment
 • Deminsion( H x W x D ) 175x38x105mm
 • Enclosure Metal With Fixing kits
 • Weight
 • Warranty 1 year
